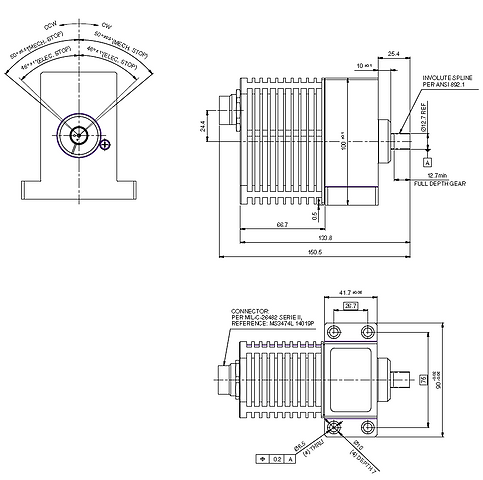

MSA-2411

Servo Actuator for UAV

The MSA-2411 Servo Actuator is a high quality, accurate product, optimized for UAV requirements such as: temperature range from -40° C to + 71°C, EMI RFI shielding and high reliability. The MSA-2411 is a 28 VDC based actuator with brushless DC motor, high efficiency gearbox and electronic control system. It is characterized by high torque and light weight. The MSA-2411 has an input-output 19pin connector interface, shown in table below, withRS422/485 half duplex communication link. The MSA-2411 received position command and transmits position feedback and status. Voltage input command proportional to the required axial angle, and the motor current consumption indication pin. It conforms to MIL-STD 461E, MIL-STD 704E, and MIL-STD 454H.

Request A Quote

Specifications

1/1

Pin Assignment

1/1

This document and the information contained herein is the property and copyright of MTC Industries and Research Carmiel Ltd and is delivered on the express condition that it is not to be reproduced in whole, or in part, or used for manufacturingpurposes by anyone, without written consent of MTC, and that no right is granted to use any information herein contained.
